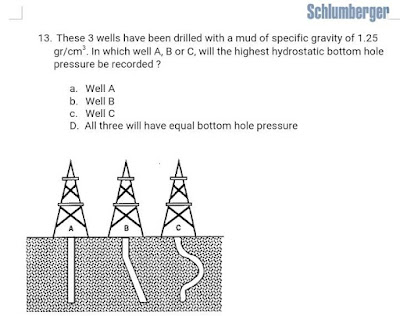

Look to this picture and answer which well A,B,C will the highest
?hydrostatic Bottom Hole pressure be recorded
Answer 1
D cause HP depends on the TVD NOT MD or the shape of direction
Answer 2
Because the three wells have the same Equal tvdand the same mud density
Answer 3
(Number (D
because 3 wells have the same TVD and Hd depend on True vertical Depth not on Measuerd depth and this angle don't affect on the pressure Value
Hd=0.52*Mud Density*TVd
Answer 4
D, all have the same depth (tvd) and same mud gravity , density .
From phesics p equal to the weight of the virtical air +Wt of mud .
&all are equal
Answer 5
it looks like the tvd in the 3 wells is equal so hp is same also tep also thermal gradient based on tvd also
Answer 6
D TVD is used in deviated wells and its equal to H in the Bottom hole pressure
thanks
