Wooden Vehicle Set Scroll Saw Pattern.

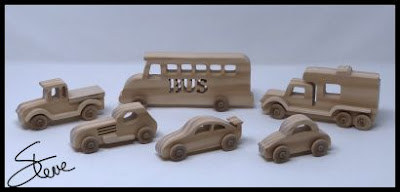

Make your child or grandchild a complete set of wooden vehicles. These are small toys. The small car is only three inches long. The body of each vehicle is cut from 3/4" thick select pine from Home Depot. A 1" X 4" board is wide enough for even the tallest vehicle in the set.  The fenders and other accessories are cut from 1/4" thick Baltic birch ply but any 1/4" material you have is fine.

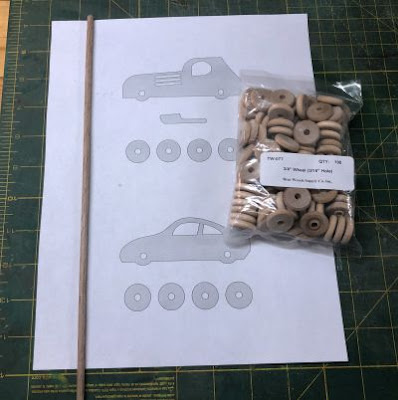

I included patterns for the wheels but I suggest buying a bag of the 3/4" wheels with 3/16" axle hole.
The axles are 3/16" diameter wooden dowel. I like to use dowel rod for the axle but you can also use axle pegs.

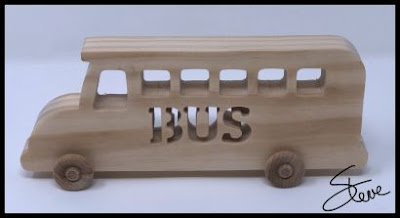

 School Bus
 Camper

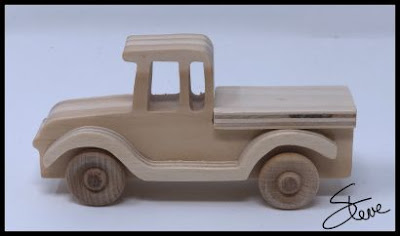

 Pickup Truck

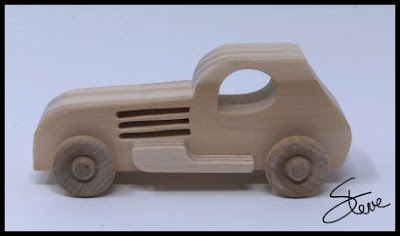

 Hot Rod

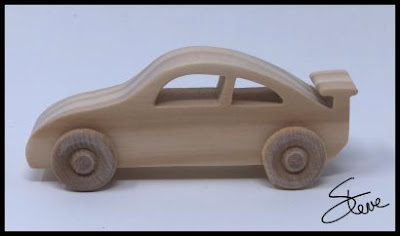

 Race Car

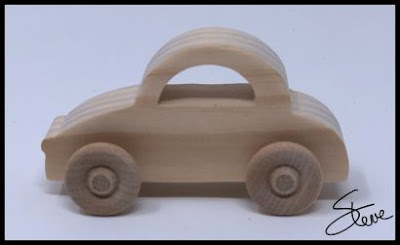

 Car

You need a total of 26 wheels. A bag of 25 wheels only cost $2.50 so you will need to but at least two bags.
