Application of Pumps

Tags: pump pumps fluid

Application of Pumps

Application-of-Pumps


Pump Application - Depending on the specific task, the pumping equipment of the various type and operational principle may be applied to the same area. Here we'll discuss the return of pumps' groups, that are associated with their purpose.

Metering pump

Metering Pump equipment supposed for dosing planned quantities of fluid. Positive displacement pumps are ideal for this purpose: piston, membrane etc. they allow for metering of planned amount of transferred medium and stop flowing of fluid. so as to execute such perform these pumps may well be given further systems or have some design particularities. Piston pumps may be equipped with many operating cavities, that are actuated by the single drive and have offset operative cycle relative to every alternative. Some models are in addition equipped with the mechanism for adjusting the cavity operating volume so as to supply a lot of accurate dosing. For control and dosing, the pumps of this type are equipped with stepper motors or alternative control devices, therefore the operational device would execute planned amount of movements. Particularities of enforced form of the pump also are considered for dosing functions. as an example, membrane pumps are used, once metered fluid is poisonous, with chemicals aggressive or explosive. For more information Visit Dosing Pumps

Slurry pumps

Slurry pump equipment, that is intended for withdrawal of fluids with a high content of solids of various sizes. It may be bottom sediment from varied reservoirs, tanks and foundation pits, river sand and slurries. slurry pumps may be of normal submerged or semi-submerged construction. Centrifugal pumps are sometimes enforced for these functions. meantime further requirements are applied for them: resistance to abrasive wear and skill to transfer a medium with a high content of solids. These options are provided by usage of wear-resistant materials and selection of the best relation between blade rotation speed and blade size, since if rotation speed lowers, abrasive wear of its elements will increase and size increases accordingly.

Booster pumps

Booster pump functions as a component of pumps units and intended for pressure increasing or providing an extra vacuum to in the system. Has to design of air pump (can be of oil-vapor, steam-jet, mechanical etc.). it's used in installation system for the increase of head. A booster pump may be put in before main operational pump so as to produce operation of latter in mode while not cavitation or to produce intake of fluids from remote vessels. For Detailed info please visit Booster pump

Mud pumps

A single-purpose type of pumping equipment, that is enforced in drilling equipment and supposed for providing mud fluid circulation in drilled well. Construction of such pump may be of rotodynamic or positive displacement type. Axial, plunger and piston sorts of pumps are used. Such severe operation conditions are the reason for many necessities for mud pumps. they need to give a constant and uniform feed of mud fluid so as to prevent the unwanted influence of pulsations. meantime they must be powerful enough to circulate fluid and be resistant to abrasive wear by circulated fluid and may give for a chance to quickly repair and replace broken components.

Deep-well pumps

Deep Well pump equipment largely of semi-submerged design, once below the level of pumped fluid there's only operational device - blade. These pumps have a long cylindrical body, that simplifies installation into operational position. Deep good pumps are able to create a high head, enough not just for fluid lifting, but for its feeding trough pipeline additionally.

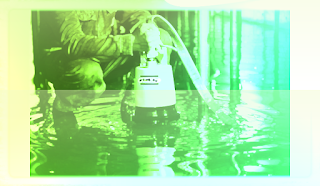

As the name implies, the deep-well pump is applied for fluid lifting out of assorted wells and pits. they will be used for water system from flowing beds and for pumping water out of flooded basements and trenches. Submerged pumps may be also used in mining, chemical, construction and alternative industries.

Foam pumps

Foam pump equipment, which is intended for transferring of emulsions and pulps with the varied coefficient of phases. Vertical foam pump is construction combined in one device and consists of an engine, dedicated reservoir, and pump. identifying a feature of foam pumps is a conical reservoir with tangential emulsion intake. Rotating blade creates vortex cavity of transferred medium during this intake, wherever gas half is separated and liquid half falls onto operating blade and discharged from the nozzle.

The main feature of this type of pumps prescribes its area of application. Foam pumps are used in any facilities, wherever it's necessary to transfer varied sorts of emulsions. Such pumps are used in waste treatment facilities, wherever it's necessary to get rid of floating layer in floatation facilities and in enrichment plants, oil-producing and oil-refining facilities. Foam pumps also are used for construction, since they're able to pump construction mixes.

Fire pumps

Fire pump basically it's console pump, that is outfitted for firefighting functions. a Since pump doesn't have the self-priming ability, it may be connected to the air pump for priming if water is drawn from the water body. If firefighting fluid is drawn from the tank, the that is located on top of the level of the suction nozzle, then priming isn't necessary. fireplace pump may be additionally equipped with pressure gauge and system for head dynamic amendment so as to prevent damage to pump or firefighting hose just in case latter was quenched or clogged. If foam mixture is employed for firefighting, then fireplace pump are equipped with foam mixer for forming, wherever pumped water is mixed according to predetermined proportion with a foam-producing agent, that is delivered from a separate vessel.

For more information about the application and other details of a Vacuum pump, gear pump, well pump, chemical pump, mud pump, submersible pump, chemical dosing pump etc., please follow Pumps and Pumping Equipments.

Here is the various type of use of Pumps and equipment
