Rotary Vane Pump
Rotary vane Pumps - a hydraulic machine of positive displacement action, that creates many operating chambers throughout operation by separating area by pump body, rotor and two near plates (vanes). The rotor is found within the body and has slots, wherever plates area unit freely put in (or beneath the force of spring). One finish off those plates is resting and slippery against the body. Rotor and body axis area unit offset, so the volume of given operating cavity changes throughout rotor rotation and fluid is transferred as a result of this action.
Rotary vane pumps haven't wide used a comparison to the piston or centrifugal ones, however, they need many benefits which will build their application additional advantageous. Pumps of this kind area unit compact, don't have important feed inconsistency and that they are fairly straightforward to manufacture and operate. Construction of operational device provides the chance to work in reverse mode and if a fluid is forced into the pump, it will operate as a hydraulic motor. Plates are carrying the foremost, however, they're simple to interchange and this simplifies repair and service.
Additional stress may be placed on water-packed pumps. Plates are bolt mounted in such pump. property ring of fluid is made inside body throughout operation and rotor, plates, body and surface of fluid ring produce the operating cavity. Pumps of this kind area unit used as vacuum pumps. The absence of contacting elements is an apparent advantage of those pumps and this provides the pumps with high resistance to numerous impurities. Some disadvantages of water-packed pumps belong necessity to add a system for fluid catching and returning, that is carried-over with transferred gas throughout the operation.
Diagram of rotary-vane pump operation principle
Gear pumps - pumping equipment with meshed gears. Gears area unit placed into the body and dealing cavities are created between body walls and near Gear teeth. once teeth of near gears mesh, it results in the decrease of corresponding operating cavities volume. This successively results in displacement of transferred medium portion into discharge nozzle.
Pumps of this sort area unit able to operate in reverse mode; their construction is easy and might reach high speeds of gears rotation. At that, their dependability factor is over in several pumps, that area unit used for similar functions. Gear pumps are often applied for transferring of varied viscous mediums, like melted polymers or liquid building mixes. in the meantime operation principle of the gear pump needs a magnified accuracy of elements producing so as to exclude the chance of transferred medium back-flow throughout the operation.

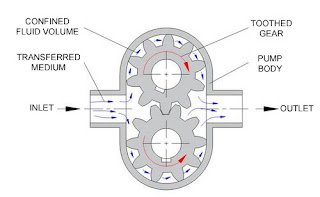

Diagram of Gear pump operation principle
