Low-Maintenance Treatment Package for Various Water Problems

Hello Mr. G,

Thank you for your phone call yesterday.  As you had requested, I’ve compiled a list below of systems that could be installed together as a package to treat odor, bacteria, iron, manganese, hydrogen sulfide, sediment, and organic compounds in a variety of water sources.  The system consists of a low-maintenance, non-electric Chlorine Pellet Feeder which is extremely easy to transport, install and maintain.

Then the water would be sent through a large 80-gallon contact tank to give the chlorinated water time to react, ensuring disinfection and oxidation of minerals like iron and manganese.  Next would come the filtration in the form of a 5-micron sediment backwash system, and finally a backwashing carbon filter, but of which are self-cleaning and don’t require any filter cartridge changing.



Dry Pellet In-Line Chlorinator Model 400


The Model 400 dry chlorine pellet feeder will operate on a varying pressure such as a home well system or on a constant pressure such as a sprinkler or pool system (up to a maximum of 75 psi). No messy chemicals; no moving parts; no electricity required.

Click here for additional information.
And as for the pellets, more information can be found at this link.



Tank, Contact Mixing 80 Gallon, 21” Diameter X 72” Tall
Unlike Well Mate contact tanks rated for 75 PSI max, this tank is rated for 125 PSI.  1-1/2 inch inlet and out at TOP, plus DRAIN at bottom makes installation fast and easy.  These lightweight seamless totally non-corrosive Retention Tanks are ideal for new and replacement installation where durability is at a premium.

Features:  100% non-metallic polymer materials, impervious to chemical attack.  Choose 1", 1-1/4" or 1-1/2" threaded in-out connections for top.  Drain:  2" slip PVC at bottom.  No drain Valve Included, but is easy to set up with 2" PVC available from any plumbing supply or home depot store etc.  Easy installation and unmatched durability.

Dimensions:  21” Diameter X 72” Tall
Click here for additional information.

Vacuum Breaker, ½” mpt.

Vacuum breaker relief valve Watts 1/2" male 200 PSI maximum.
Required for contact and retention tanks to prevent vacuum in system and avoid imploding vessel.
Click here for additional information.
Sediment Backwash Filter 5700E – 1.5 Cubic Foot Size

Excellent quality. Low maintenance.  Unlike filter cartridges which can trap sediment and dirt causing pressure drop these systems automatically backwash out trapped sediment alleviating pressure drop.

Filters down to five microns in size.


1" or 3/4" pipe size with bypass valve included
10" x 54" tank; 1.5 cubic foot of media;

Click here for Additional information.
Carbon Filter 5700-E 1.5 CF
Includes 1.5 cubic feet of carbon Filter Media; and Digital 5700-E control valve.

All the filter media you need for the system is included. Excellent for use in de-chlorinating water, taking out hydrogen peroxide and removing many tastes and odors.
Much longer life and higher flow rates than carbon filter cartridges.


Excellent Warranty:  5 Years on Control Valve & 10 years on the media tank.
Click here for additional information.

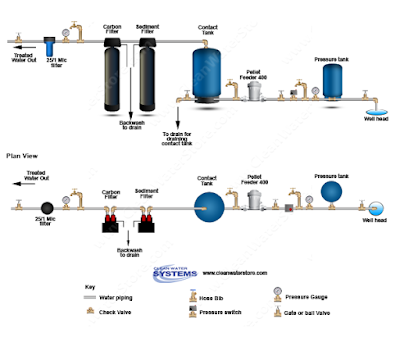

 Check out this diagram too:
